Peri Quattro column formwork

Categories Peri, Shutterings

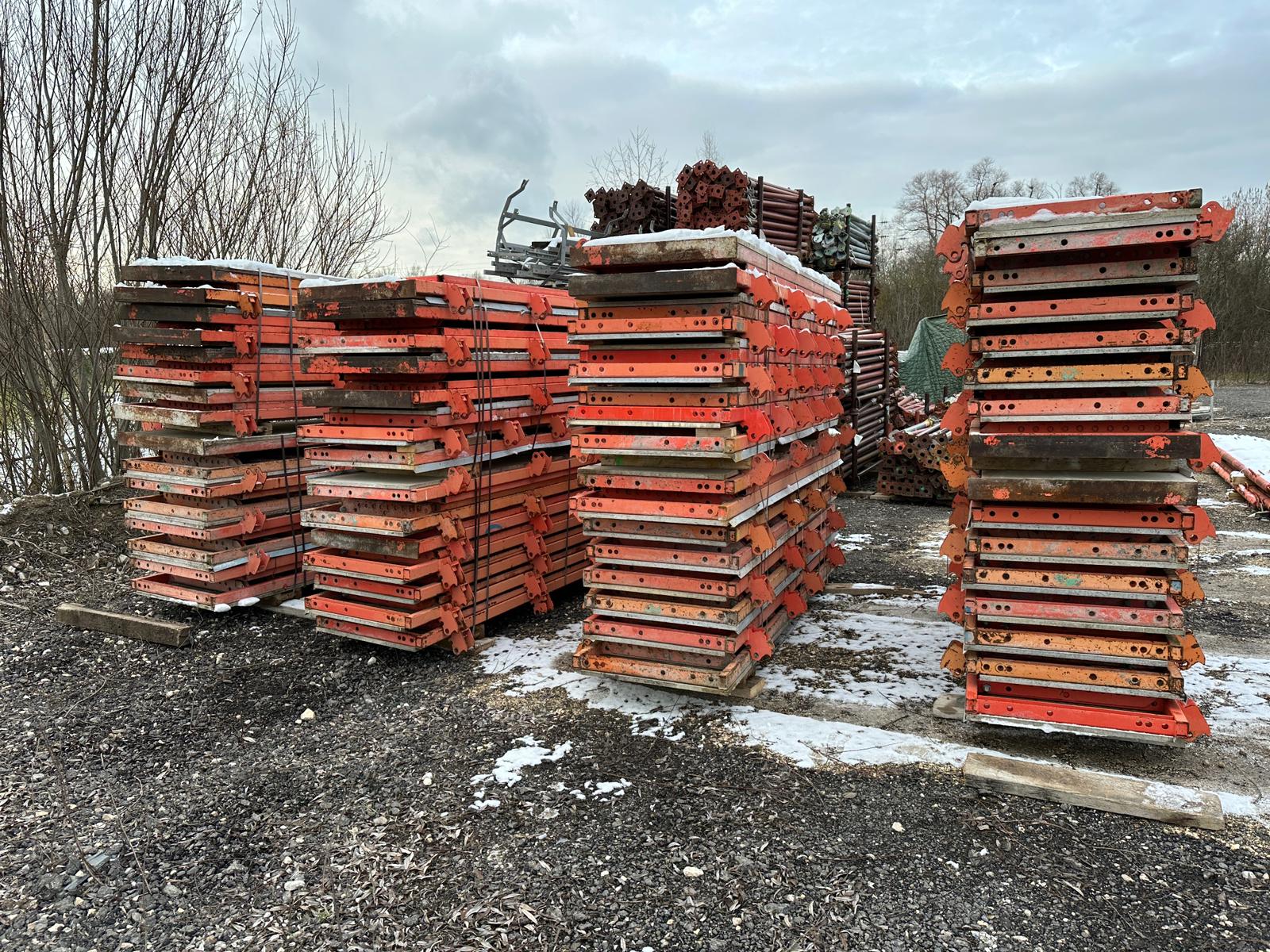

We offer the following used Peri Quattro column formwork.

Art.no.	Article description	Quantity
109925	Column element QUATTRO QES 275	40
109924	QUATTRO QES 125 column element	32
109923	Column element QUATTRO QES 50	40
037610	Triangular strip QDL 275	1
037600	Triangular strip QDL 125	1
037590	Triangular strip QDL 50	1
037540	QUATTRO QA clamping set	86
037530	Push-pull prop connector QUATTRO QR	90
037400	Concreting platform complete	7
051410	Ladder 180/6, galv.	4
103724	Exit ladder 180/2, galv.	2
051460	Ladder base, galv.	2
103718	Ladder hook, galvanized	4
103391	QUATTRO conductor connection	4
051450	Back guard 150, galvanized	2
028010	Push-pull prop RSS I (2.05 – 2.94m)	41
028020	Push-pull prop RSS II (2,91 – 3,80m)	17
106000	Base plate-2 for RSS, galvanized.	53
028270	Cantilever AV 190	28
108135	Cantilever AV 210	7

If you are interested, please send us your inquiry.

Description

Description

The one-piece QUATTRO column formwork is suitable for forming square or rectangular columns up to 4.50 m high. The complete column, including push-pull props and concreting platform, can be moved with just one crane lift. If necessary, the transfer can also be done manually with the help of 4 transfer wheels. With the high-quality plastic formwork skin screwed from behind, a high exposed concrete quality is basically achieved.

Here is a link for you to download:

https://www.jh-itc.de/wp-content/uploads/2022/12/Peri_QUATTRO.pdf
